Vent.X tips – saving the simulation

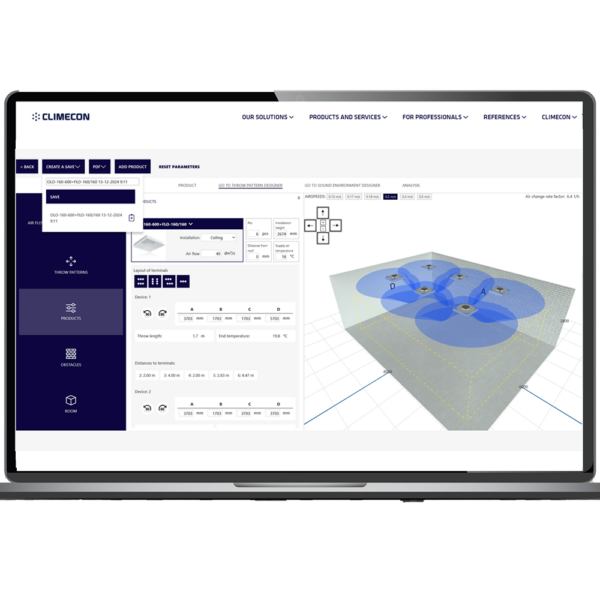

You can also save your simulation in the Vent.X selection tool. Three clicks are needed to create a recording: create a save, save and finally click on the notepad icon.
Selection programs
Vent.X Tips – Designing the throw pattern of the ROX nozzle duct

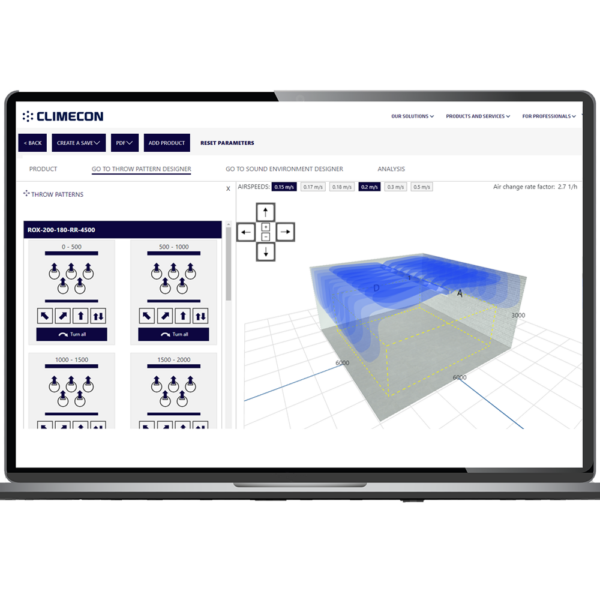

ROX nozzle ducts are intended for bringing large amounts of supply air into the room without the feeling of draft. ROX’s directable nozzles enable different throw patterns, which can be selected in the Vent.X design program.
Vent.X tips – Designing high spaces

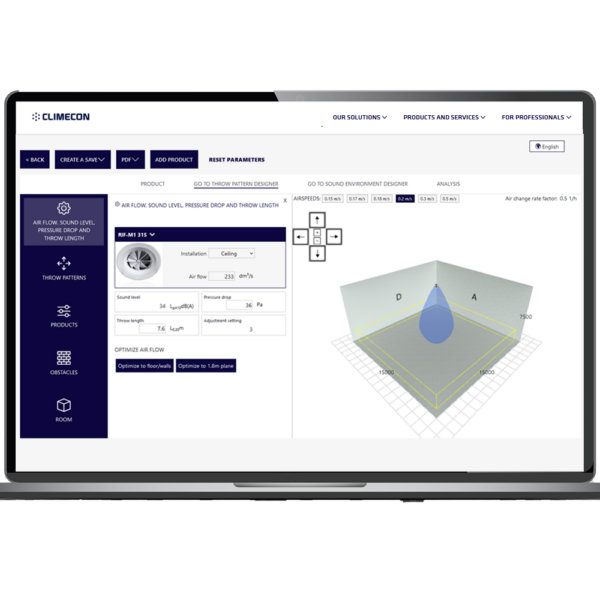

An excellent tool for examining throw lengths and throw patterns in high spaces is the “Optimize air flow” function. With the “Optimize to floor/wall” button, the program calculates the airflow for the air terminal device so that the throw length reaches exactly the floor or wall. “Optimize to 1.8 m plane” measures the airflow to reach the limit of the living zone, which is 1.8 m high.
Vent.X tips – Effect of temperature on the throw pattern
In many cases, the purpose of the supply air is to either cool or heat the room. Cooling with supply air can be considered common in many spaces. Heating, on the other hand, is most typical in different types of high spaces, such as sports facilities, shopping centers or industrial halls.
Vent.X tips – Throw pattern designer
In this article, we explain in more detail what is included in the Throw pattern designer tab. You can access the design of the throw pattern designer from the tabs in the Products front page. From the menus that open on the left side of the view, you can change the information of the device, room and throw patterns. Everything you need is easily in one view.
Vent. X tips – adding obstacles

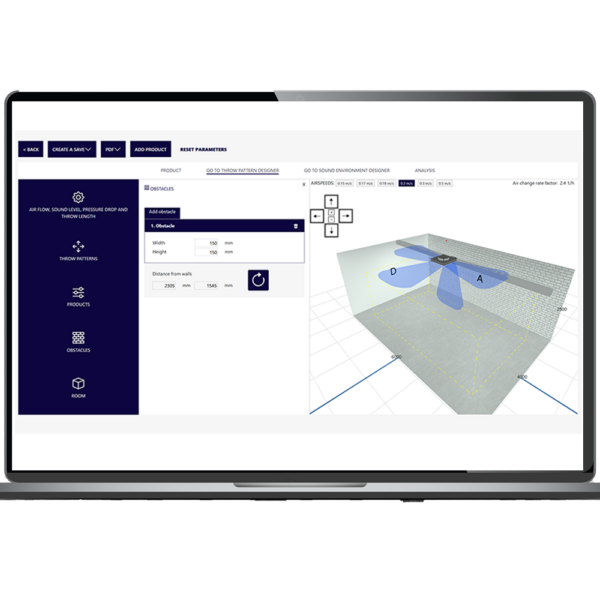

Obstacles in the path of the air flow affect the throw patterns of the air terminal devices. By modeling the obstacles in the space, their effect on the throw pattern of the selected air terminal device and the air movement can be studied. This information helps to choose the right air terminal devices for the space and to place them optimally so for example, the airflow turning down from the barrier does not cause draft problems.
Vent.X: New user interface for faster design
Improved user experience with streamlined features is at the core of the renewed Vent.X user interface. The new selection tool for air terminal devices is significantly faster and optimized for wide screens. This is to make working easier and reduces the need for scrolling.
3 Power-user features in Vent.X
We strive to ensure that HVAC designers find suitable and reliable ventilation solutions for their projects with our tools. Below we introducethree functions that anyone can use to take air terminal device design to a new level on Vent.X.
New products available in design softwares via Climecon Plugin
Our product range has grown with new products in air terminal devices, louvres, and professional kitchen ventilation solutions. The new devices are ready to be added into designs with the easy-to-use Climecon plugin.
