Beschreibung
TUISKU-PU ist ein senkrechtes Modell, was in der Wand versenkt wird.
Materialien der Tuisku-Schneeschutzvorrichtungen (Konstruktionsstoffe):
- Verzinkt (ZnFe)
- Lackiert (Ma)
- rostfrei (RFe)
- Säurebeständig (HFe)
- Kupferblech (Cu)
Größere Gitter als 2200 x 2000 mm werden aus zwei oder mehr Spalten erstellt,
die miteinander verbunden werden.
Individuelle Maße (keine Standardmaße) sind möglich. Wir bitten Sie, sich die Maße von der technischen Beratung von Climecon bestätigen zu lassen.
100% water insulation
Air flow |
Water flow
|
Results
|
qv |
v |
qr |
qd |
qro |
qdo |
E |
Class |
m3/s |
m/s |
l/h |
l/h |
(l/h)/m2 |
(l/h)/m2 |
% |
|
0.00 |
0.00 |
48.00 |
0.000 |
75.00 |
0.000 |
100.00 |
A |
0.64 |
1.00 |
48.00 |
0.000 |
75.00 |
0.000 |
100.00 |
A |
1.28 |
2.00 |
48.00 |
0.000 |
75.00 |
0.000 |
100.00 |
A |
qv Air flow, dm³/s
v Face velocity
qr Water flow, l/h
qro Water flow, l/h
qd Water entered, (l/h)/m2
qdo Water entered, (l/h)/m2
E Water separation rate, %
Product code
TUISKU |
– |
PU |
– |
1000×1000 |
– |
ZnFe |
– |
L |
– |
MA |
– |
RR40 |
– |
KLV |
– |
800×800 |
1 |
|
2
|
|
3
|
|
4
|
|
5
|
|
6
|
|
7
|
|
8
|
|
9
|
1 = Product
2 = PU = Vertical vanes, flush-mounted model
P = Vertical vanes, no side vanes, surface model
PS = Vertical vanes, with side vanes, surface model
V = Horizontal vanes, no side vanes, surface model
VS = Horizontal vanes, with side vanes, surface model
VU = Horizontal vanes, flush-mounted model
3 = Size (L x H) mm
4 =Material
ZnFe galvanized steel
RFe stainless steel
HFe acid resistant steel
Cu sheet copper
5 = Installation frame
6 = Painting
7 = Colour according to RR or RAL colour chart
8 = Rear connection, Note! only flush-mounted models
9 = Rear connection size (A x B) mm, defined by designer
Dimensions

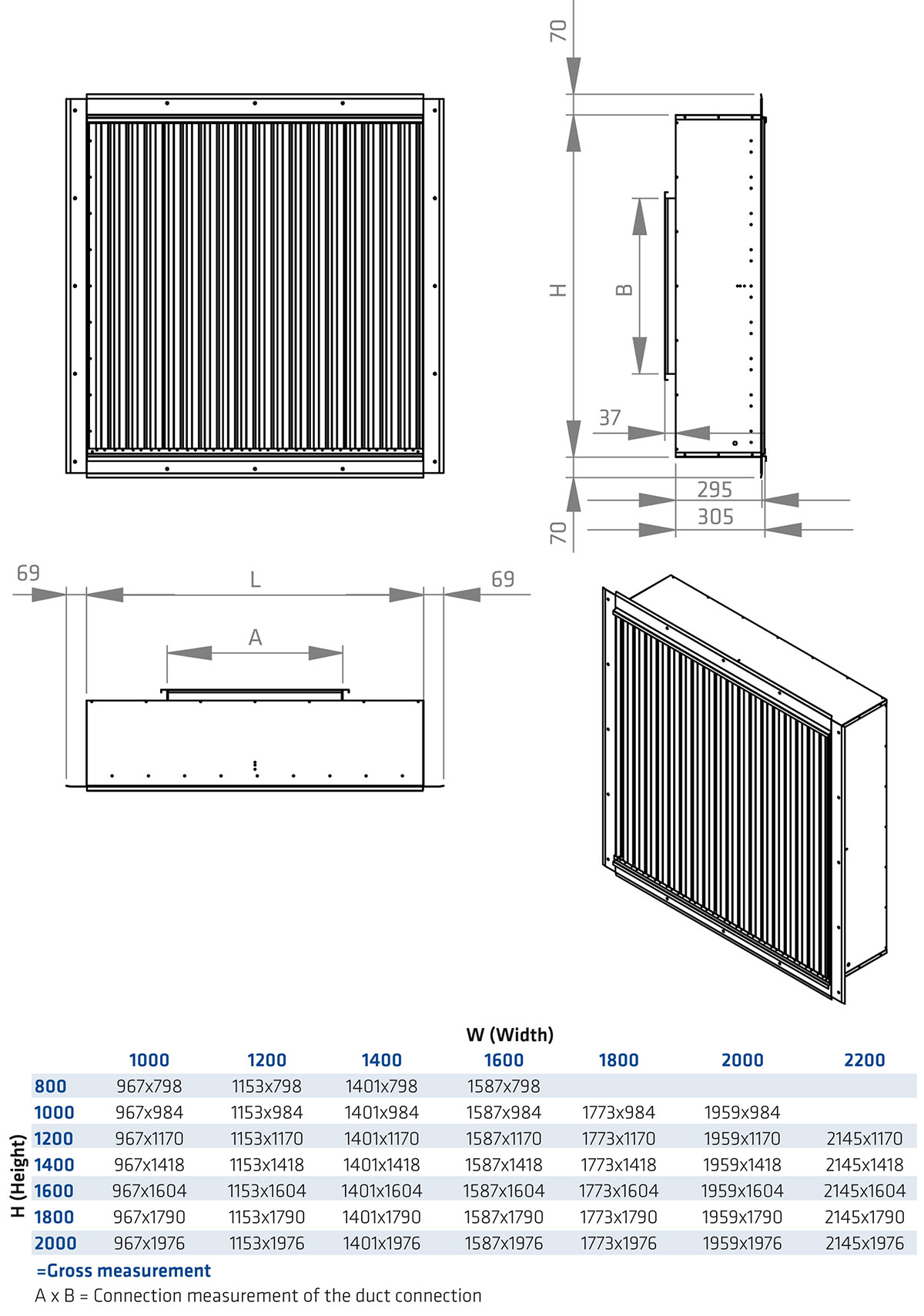

See dimensions on Tuisku.X dimensioning tool.
Tuisku.X
The smallest available special size or special scale of the TUISKU snow cover is 300×400 mm.
