Beschreibung
TUISKU-PS ist ein Schnee- und Regenschutz mit waagerechten Gittern ohne Endgitter.
Materialien der Tuisku-Schneeschutzvorrichtungen (Konstruktionsstoffe):
- Verzinkt (ZnFe)
- Lackiert (Ma)
- rostfrei (RFe)
- Säurebeständig (HFe)
- Kupferblech (Cu)
Größere Gitter als 2200 x 2000 mm werden aus zwei oder mehr Spalten erstellt,
die miteinander verbunden werden.
Individuelle Maße (keine Standardmaße) sind möglich. Wir bitten Sie, sich die Maße von der technischen Beratung von Climecon bestätigen zu lassen.
Sonstige Anmerkungen:
Die Größe des Gitters muss an allen Seiten mindestens 100 mm größer sein als die Öffnung.
OptiINSTALL speeds up installation
The OptiINSTALL channel that makes installation considerably easier is standard equipment in the surface-mounted TUISKU grilles.
Instead of having to support the heavy grille against the wall while fumbling for the right place through trial and error, you can lock in the installation height with OptiINSTALL. This mounting channel makes INSTALLATION easier and faster as you can lift the grille on it.
OptiINSTALL is attached 13 cm above the hole. The level stays firmly above the channel, and the installer can screw it onto the right place above the duct.
When the TUISKU grille is set on the OptiINSTALL channel, the installer still has leeway to move the grille horizontally over the channel. This ensures that the right place is found before the grille is screwed in for good. OptiINSTALL is also of great use when several TUISKUs are installed side by side, and especially the horizontal movability really comes in handy.
100% water insulation
Air flow |
Water flow
|
Results
|
qv |
v |
qr |
qd |
qro |
qdo |
E |
Class |
m3/s |
m/s |
l/h |
l/h |
(l/h)/m2 |
(l/h)/m2 |
% |
|
0.00 |
0.00 |
48.00 |
0.000 |
75.00 |
0.000 |
100.00 |
A |
0.64 |
1.00 |
48.00 |
0.000 |
75.00 |
0.000 |
100.00 |
A |
1.28 |
2.00 |
48.00 |
0.000 |
75.00 |
0.000 |
100.00 |
A |
qv Air flow, dm³/s
v Face velocity
qr Water flow, l/h
qro Water flow, l/h
qd Water entered, (l/h)/m2
qdo Water entered, (l/h)/m2
E Water separation rate, %
Product code
TUISKU |
– |
PS |
– |
1000×1000 |
– |
ZnFe |
– |
L |
– |
MA |
– |
RR40 |
– |
KLV |
– |
800×800 |
1 |
|
2
|
|
3
|
|
4
|
|
5
|
|
6
|
|
7
|
|
8
|
|
9
|
1 = Product
2 = PS = Vertical vanes, with side vanes, surface model
P = Vertical vanes, no side vanes, surface model
V = Horizontal vanes, no side vanes, surface model
VS = Horizontal vanes, with side vanes, surface model
PU = Vertical vanes, flush-mounted model
VU = Horizontal vanes, flush-mounted model
3 = Size (L x H) mm
4 =Material
ZnFe galvanized steel
RFe stainless steel
HFe acid resistant steel
Cu sheet copper
5 = Installation frame
6 = Painting
7 = Colour according to RR or RAL colour chart
8 = Rear connection, Note! only flush-mounted models
9 = Rear connection size (A x B) mm, defined by designer

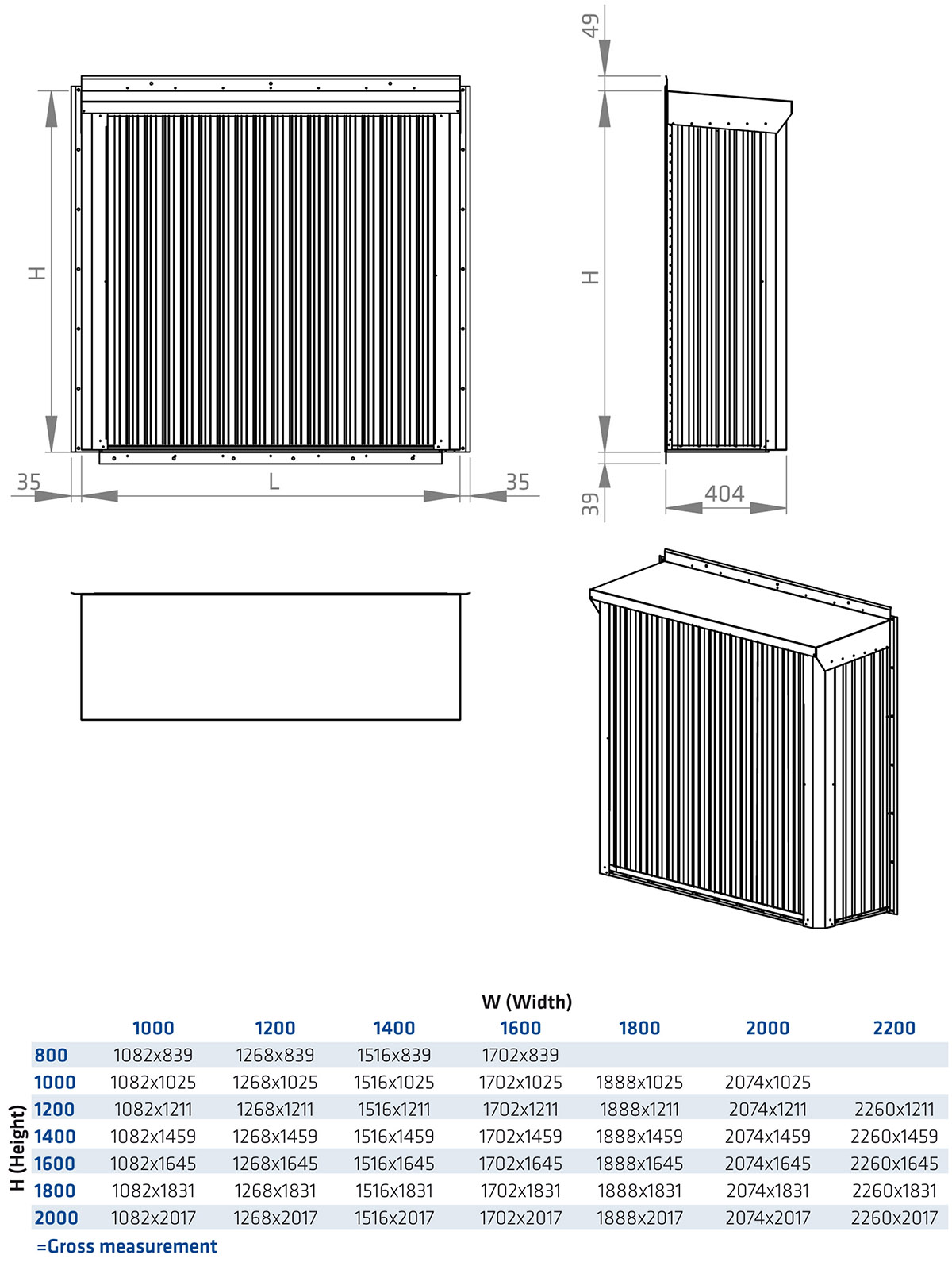

TUISKU-PS Dimensions
See dimensions on Tuisku.X dimensioning tool.
Tuisku.X
The smallest available special size or special scale of the TUISKU snow cover is 300×400 mm.
